tension spring strand 0,9 x De 11,7
10/10 - tension spring strand 0,9 x De 11,7
Qty from
1
5
10
20
30
50
CHF/Stk.
23.00
17.50
14.00
10.00
8.00
6.50
Weight
d
De
D
F0
Fn
10/10
189.3254
1.4310 nichtrostend
0.90
11.70
10.80
1.46
20.41
More Information
Weight g
189.3254
Material
1.4310 nichtrostend

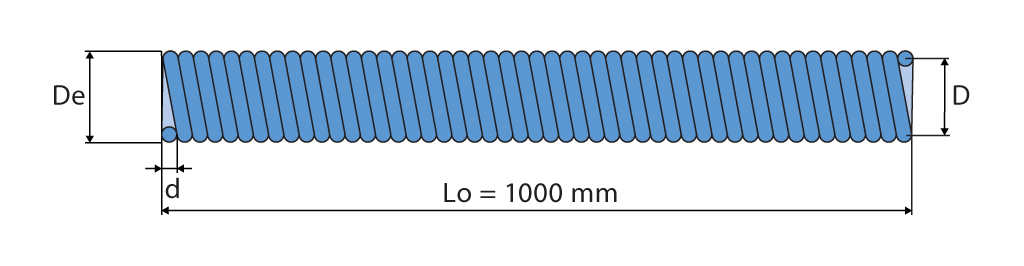

d = Thickness Ø mm
0.90
De = Outer Diameter mm
11.70
D = Average Diameter mm
10.80
F0 = Wound Preload N
1.46
Fn = Maximum Spring Tension at Ln N
20.41
Individual product configuration
Searched product not found? Simply adapt our products with the configurator, download the newly created CAD file and create an offer request. We will then be happy to check your settings for you.
