Constant force springs

Constant force springs from stock

1.4310 stainless steel

Constant force springs are formed from steel strip into a tightly wound coil. The springs are used for a linear movement and generate an almost constant force over the entire extension length. They can be used individually or in combination with several springs. Do you have any questions? We will be pleased to advise you.

Fatigue strength

Constant-force springs are changed from a round to a straight shape during use. The resulting bending stresses lead to a relatively shortened service life when compared to a conventional compression spring, because a wire is subject to more favourable shear stresses.

A constructive extension of the service life leads to unrealistically thin materials and associated component enlargements, with simultaneously considerably reducing forces, which would nevertheless not provide for a significant increase in the fatigue strength of the bending spring.

The service life of 15,000 or 40,000 load cycles specified in our load changes for certain constant force springs, can therefore not be significantly increased. For short strokes, a spring can be used several times during service intervals by repositioning (i.e. by removing the used spring section).

Quantity discounts can be viewed by clicking on the item number. Delivery usually takes place on the same day if the items are in stock and the order is placed before 3 pm. If you know the item number, you can enter it in the search field in the upper left corner to get directly to the item.

Find the right dimensions using the filters. If the desired size is not in stock, please contact us, we will be glad to help you.

Products

0%

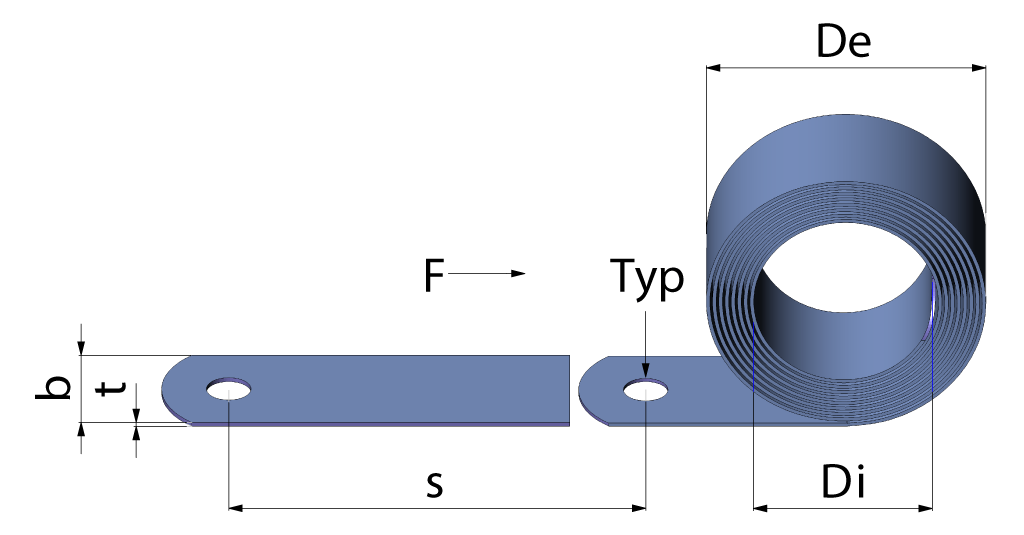

Part Number
Description
Band Thickness
t
mm
Band Width
b
mm
Spring Travel
s
mm
Inner Diameter
Di
mm
Outer Diameter
De
mm
Spring Force
F
N
Type
Number of Cycles
Nc
pcs
Ref. Plain Bearing Dimensions
mm
Ref. Plain Bearing
Material
Stock
Cart
Requisiton List
0.05 - 0.64
3.2 - 60
167 - 2103
4.8 - 88
6.2 - 100.2
0.46 - 150.20

KKF-8036Constant force spring0.053.21674.86.20.46E15000Stainless steel
pcs
Add to Cart
Add to Requisiton List
KKF-8038Constant force spring0.056.41674.86.20.93E15000Stainless steel
pcs
Add to Cart
Add to Requisiton List
KKF-8037Constant force spring0.083.22527.29.30.70E15000Stainless steel
pcs
Add to Cart
Add to Requisiton List
KKF-8040Constant force spring0.087.92527.29.31.70E15000Stainless steel
pcs
Add to Cart
Add to Requisiton List
KKF-8039Constant force spring0.104.83389.712.41.40E15000Stainless steel
pcs
Add to Cart
Add to Requisiton List
KKF-8041Constant force spring0.109.53389.712.42.80D15000Stainless steel
pcs
Add to Cart
Add to Requisiton List
KKF-1000Constant force spring0.1010.030010.012.32.80D1500010x12x10KKL-1042Stainless steel
pcs
Add to Cart
Add to Requisiton List
KKF-1001Constant force spring0.1010.030014.015.91.60D4000012x16x10KKL-1043Stainless steel
pcs
Add to Cart
Add to Requisiton List
KKF-8042Constant force spring0.139.542212.115.43.50D15000Stainless steel
pcs
Add to Cart
Add to Requisiton List
KKF-8043Constant force spring0.1312.742212.115.44.70D15000Stainless steel
pcs
Add to Cart
Add to Requisiton List
KKF-8044Constant force spring0.1512.750514.518.55.60A15000Stainless steel
pcs
Add to Cart
Add to Requisiton List
KKF-1002Constant force spring0.1515.050014.017.96.20D1500015x17x15KKL-1044Stainless steel
pcs
Add to Cart
Add to Requisiton List
KKF-1003Constant force spring0.1515.050019.022.34.40D4000020x23x15KKL-1045Stainless steel
pcs
Add to Cart
Add to Requisiton List
KKF-8045Constant force spring0.1515.950514.518.57.00A15000Stainless steel
pcs
Add to Cart
Add to Requisiton List
KKF-1004Constant force spring0.1520.050014.017.98.40H1500015x17x20KKL-1046Stainless steel
pcs
Add to Cart
Add to Requisiton List
KKF-1005Constant force spring0.1520.050019.022.35.50H4000020x23x20KKL-1047Stainless steel
pcs
Add to Cart
Add to Requisiton List
KKF-8046Constant force spring0.2014.367319.424.78.40A15000Stainless steel
pcs
Add to Cart
Add to Requisiton List
KKF-1006Constant force spring0.2015.070019.024.39.30D1500020x23x15KKL-1048Stainless steel
pcs
Add to Cart
Add to Requisiton List
KKF-1007Constant force spring0.2015.070029.033.14.30D4000030x34x15KKL-1049Stainless steel
pcs
Add to Cart
Add to Requisiton List
KKF-1008Constant force spring0.2020.070019.024.312.30H1500020x23x20KKL-1047Stainless steel
pcs
Add to Cart
Add to Requisiton List
1234
Zur Wunschliste hinzufügen

Didn't find the product you were looking for? Configure now!

Simply adapt our products with the configurator, download the newly created CAD file and create a quotation request. We will then be pleased to check your settings for you.

To Configurator
