Main springs

Main springs from stock

1.4310 stainless steel

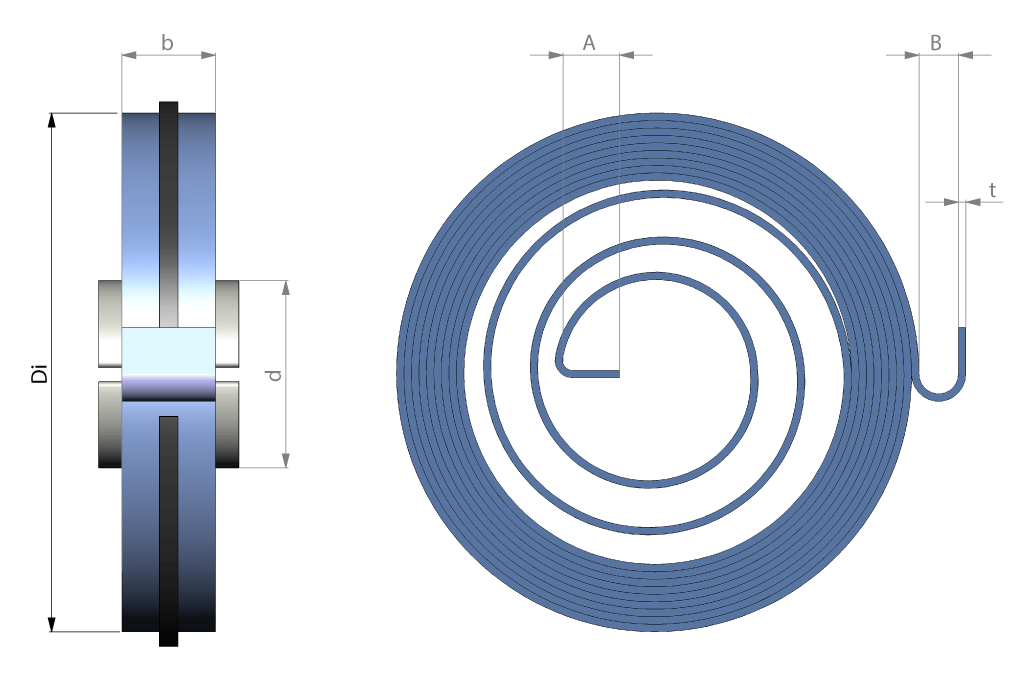

Main springs are designed for axial movements of maximum 10 or 20 turns. The springs are supplied with a retaining ring, which must be carefully removed during assembly. On the outside, the spring is held on the edge of the housing or on a pin. On the inside, the spring should be mounted on a slotted axle. By expanding the inner end, the spring can also be mounted on a slightly larger axle. To keep friction as low as possible, the spring should be lubricated before mounting. Otherwise, the spring force can be reduced by up to 20%. If a higher torque is required, several springs can be mounted side by side. In this case, we recommend mounting a washer between the springs. Main springs are preloaded with 1.5 or 2.5 turns.

Quantity discounts can be viewed by clicking on the item number. Delivery usually takes place on the same day if the items are in stock and the order is placed before 3 pm. If you know the item number, you can enter it in the search field in the upper left corner to get directly to the item.

Find the right dimensions using the filters. If the desired size is not in stock, please contact us, we will be glad to help you.



Didn't find the product you were looking for? Configure now!

Simply adapt our products with the configurator, download the newly created CAD file and create a quotation request. We will then be pleased to check your settings for you.

To Configurator
